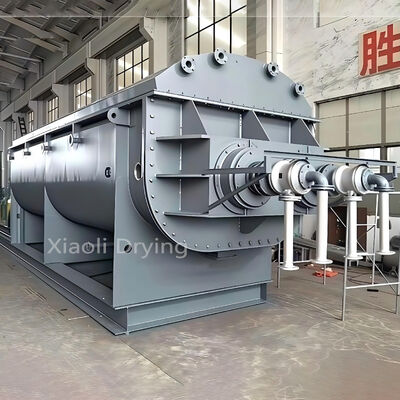

Industrial Advanced Horizontal Paddle Type Drying Machine Heat Transfer Dryer

KJG-52 Industrial Advanced Horizontal Paddle Type Drying Machine with Heat Transfer Technology

The KJG-52 Hollow Paddle Dryer is an industrial advanced horizontal paddle type drying machine featuring superior heat transfer performance. With 52 m² heat transfer area, 3.96 m³ effective volume, and 30 kW drive system, it is engineered for maximum throughput in the most demanding large-scale industrial drying applications.

Key Features

• Exceptional Heat Transfer: 52 m² heat transfer area through double-jacketed hollow paddles and vessel provides industry-leading indirect thermal exchange for rapid, efficient moisture removal.
• Industrial Advanced Design: Horizontal configuration with optimized paddle geometry and 5,258 mm dryer body length ensures maximum material contact and uniform drying throughout the processing chamber.
• Horizontal Paddle Type: Space-efficient horizontal layout with 8,306 mm total length enables easy integration into existing production lines with convenient access for operation and maintenance.
• 3.96 m³ Effective Volume: Massive processing capacity handles the largest industrial production requirements, reducing drying cycles and maximizing daily throughput.
• 30 kW Industrial Drive: Heavy-duty motor with precision gearing ensures reliable continuous operation when processing high-volume industrial material feeds around the clock.
• Precision Speed Control: 10-20 r.p.m variable paddle rotation allows fine-tuning of residence time for optimal moisture removal across different material types and feed rates.
• Energy-Efficient Operation: Advanced indirect heating system with optimized thermal design minimizes steam consumption per ton of dried product, delivering cost-effective large-scale industrial processing.

Technical Specifications

Applications

The KJG-52 horizontal paddle type drying machine delivers industrial advanced drying with superior heat transfer for large-scale production. Typical applications include: bulk chemical powder and intermediate drying, mineral concentrate and tailings processing, large-volume industrial sludge dewatering, fertilizer and agrochemical granule drying, food processing by-product recovery, and biomass material dehydration. The massive 3.96 m³ volume makes it ideal for operations requiring maximum single-batch throughput.

Why Choose KJG-52?

The KJG-52 combines industrial advanced design with exceptional heat transfer performance in a horizontal paddle type configuration. With 52 m² heat transfer area, it represents the ultimate large-scale indirect drying solution for manufacturers requiring maximum capacity and proven reliability.
